[MT4指标]突破指示指标

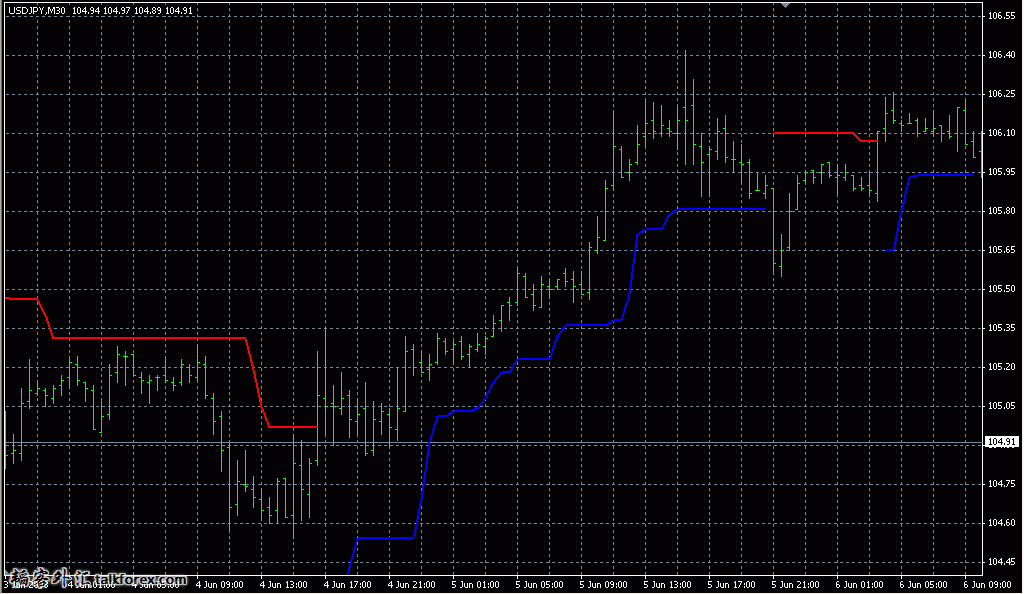

突破指示指标 使用指标指示突破点位
主图指标
mt4指标类型:趋势指标
是否能用在mt4手机版上:否
是否含有未来函数:无
//+------------------------------------------------------------------+
//| ATR Trailing Stop.mq4 |
//| |
//| |
//+------------------------------------------------------------------+
#property copyright "Copyright Team Aphid"
#property link ""
//---- indicator settings
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue
#property indicator_color2 Red
//---- indicator parameters
extern int BackPeriod = 1000;
extern int ATRPeriod = 3;
extern double Factor = 3;
extern bool TypicalPrice = false;
//---- indicator buffers
double ind_buffer1;
double ind_buffer2;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- drawing settings
SetIndexStyle(0,DRAW_LINE,EMPTY,2);
SetIndexDrawBegin(0,ATRPeriod);
SetIndexBuffer(0,ind_buffer1);
SetIndexStyle(1,DRAW_LINE,EMPTY,2);
SetIndexDrawBegin(1,ATRPeriod);
SetIndexBuffer(1,ind_buffer2);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS)+2);
//---- name for DataWindow and indicator subwindow label
IndicatorShortName("ATR Trailing Stop("+ATRPeriod+" * "+Factor+")");
SetIndexLabel(0,"Support");
SetIndexLabel(1,"Resistance");
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| Moving Averages Convergence/Divergence |
//+------------------------------------------------------------------+
int start()
{
int limit;
int counted_bars=IndicatorCounted();
double PrevUp, PrevDn;
double CurrUp, CurrDn;
double PriceLvl;
double LvlUp = 0;
double LvlDn = 1000;
int Dir = 1;
int InitDir;
//---- check for possible errors
if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
//---- fill in buffervalues
InitDir = 0;
for(int i=BackPeriod; i>=0; i--)
{
if (TypicalPrice) PriceLvl = (High + Low + Close)/3;
else PriceLvl = Close;
if(InitDir == 0) {
CurrUp=Close - (iATR(NULL,0,ATRPeriod,i) * Factor);
PrevUp=Close[i-1] - (iATR(NULL,0,ATRPeriod,i-1) * Factor);
CurrDn=Close + (iATR(NULL,0,ATRPeriod,i) * Factor);
PrevDn=Close[i-1] + (iATR(NULL,0,ATRPeriod,i-1) * Factor);
if (CurrUp > PrevUp) Dir = 1;
LvlUp = CurrUp;
if (CurrDn < PrevDn) Dir = -1;
LvlDn = CurrDn;
InitDir = 1;
}
CurrUp=PriceLvl - (iATR(NULL,0,ATRPeriod,i) * Factor);
CurrDn=PriceLvl + (iATR(NULL,0,ATRPeriod,i) * Factor);
if (Dir == 1) {
if (CurrUp > LvlUp) {
ind_buffer1 = CurrUp;
LvlUp = CurrUp;
}
else {
ind_buffer1 = LvlUp;
}
ind_buffer2 = EMPTY_VALUE;
if (Low < ind_buffer1) {
Dir = -1;
LvlDn = 1000;
}
}
if (Dir == -1) {
if (CurrDn < LvlDn) {
ind_buffer2 = CurrDn;
LvlDn = CurrDn;
}
else {
ind_buffer2 = LvlDn;
}
ind_buffer1 = EMPTY_VALUE;
if (High > ind_buffer2) {
Dir = 1;
LvlUp = 0;
}
}
}
//---- done
return(0);
}
