发表于:2007-04-09 12:34只看该作者
2楼
//+------------------------------------------------------------------+
//| TTM-Trend-Map.mq4 |
//| Tamir Bleicher, +972-54-4941653 |
//| |
//+------------------------------------------------------------------+
#property copyright "Tamir Bleicher, +972-54-4941653"
#property link ""

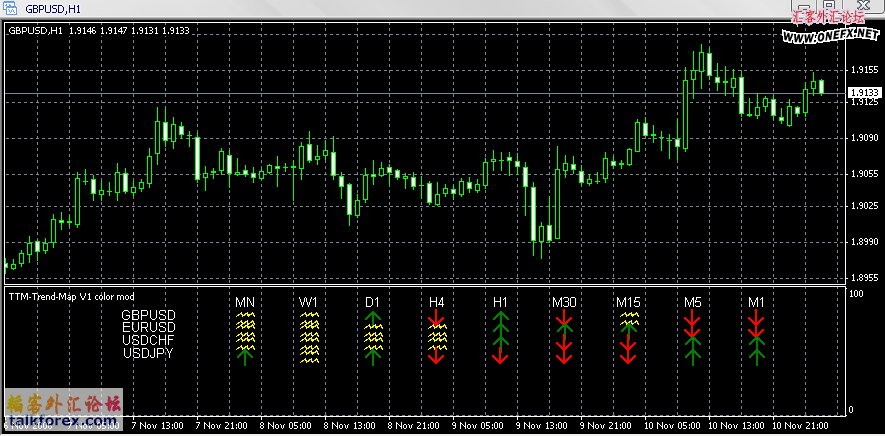

//-- This indicator will show a "Map" of the trends at different time frames on the currencies of your choice, according to the TTM-Trend indicator.
//-- You should have the TTM-Trend indicator in your indicator's folder for this indicator to work.
#property indicator_separate_window
#property indicator_minimum 0
#property indicator_maximum 100
#property indicator_buffers 1
#property indicator_color1 Red
//---- input parameters
extern int CompBars=6;//- Do not change. This is the same parameter as in the TTM-Trend indicator.
extern string SymbolSuffix="";//- If your broker names the currency pairs with a suffix for a mini account (like an "m", for example), enter the suffix here.
extern string PairsList="GBPUSD,EURUSD,USDCHF,USDJPY";//- This is where you add the currency pairs you want to track. Add each one of them separated by a coma.
extern string MainCurrency="";//- If you want to see only pairs where the USD (or any other currency) appears just enter here USD (or the currency of your choice) and it will show all USD (or the currency you chose) pairs.
extern bool Invert=false;//- If you chose to show all USD pairs and you want to show them with the USD as the first currency, change this setting to "true".
extern color UpTrendColor=Green;
extern color DownTrendColor=Red;
extern color NoTrendColor=Yellow;
extern bool MN=true;//- Change to "false" if you don't want to show this time frame.
extern bool W1=true;//- Change to "false" if you don't want to show this time frame.
extern bool D1=true;//- Change to "false" if you don't want to show this time frame.
extern bool H4=true;//- Change to "false" if you don't want to show this time frame.
extern bool H1=true;//- Change to "false" if you don't want to show this time frame.
extern bool M30=true;//- Change to "false" if you don't want to show this time frame.
extern bool M15=true;//- Change to "false" if you don't want to show this time frame.
extern bool M5=true;//- Change to "false" if you don't want to show this time frame.
extern bool M1=true;//- Change to "false" if you don't want to show this time frame.
//---- buffers
double ExtMapBuffer1;
string Pair[20];
int SymNo;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
int i,j,k;
string Cur;
bool AllCur;
//---- indicators
SetIndexStyle(0,DRAW_SECTION);
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexEmptyValue(0,0.0);
AllCur=(StringFind(PairsList,MainCurrency,0)==-1);
for (i=0; i<20; i++) Pair="";
for (i=0, j=0, k=1; i<20 && k>0; )
{
k=StringFind(PairsList,",",j);
if (k==0) Cur=StringSubstr(PairsList,j,0);
else Cur=StringSubstr(PairsList,j,k-j);
if (AllCur || StringFind(Cur,MainCurrency,0)>-1)
{
Pair=Cur;
i++;
}
j=StringFind(PairsList,",",j)+1;
if (j==0) break;
}
SymNo=i;
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
int trend(string sym,int per)
{
int t1=(iCustom(sym,per,"ttm-trend",CompBars,4,1));
int t2=(iCustom(sym,per,"ttm-trend",CompBars,4,2));
if (t1==1 && t2==1) return (1);
if (t1==-1 && t2==-1) return (-1);
else return (0);
}
void output_arrow(string label, string sym,int bar, double price, int per, string per_name, bool invert, bool create)
{
datetime time = Time[bar];
string sym1;
if (invert && StringSubstr(sym,3,3)==MainCurrency)
sym1=StringSubstr(sym,3,3)+StringSubstr(sym,0,3)+SymbolSuffix;
else { sym1=sym; invert=false; }
if (sym=="Title")
{
ObjectDelete(label+per_name);
if (create)
{
ObjectCreate(label+per_name,OBJ_TEXT,1,time,price);
ObjectSetText(label+per_name,per_name);
ObjectSet(label+per_name,OBJPROP_COLOR,White);
ObjectSet(label+per_name,OBJPROP_WIDTH,2);
}
}
else if (per==0)
{
ObjectDelete(label);
if (create)
{
ObjectCreate(label,OBJ_TEXT,1,time,price);
ObjectSetText(label,sym1);
ObjectSet(label+per_name,OBJPROP_COLOR,White);
ObjectSet(label+per_name,OBJPROP_WIDTH,2);
}
}
else
{
ObjectDelete(label+per_name);
if (create)
{
int t=trend(sym,per);
if (invert) t=-t;
if (t==1)
{
ObjectCreate(label+per_name,OBJ_ARROW,1,time,price);
ObjectSet(label+per_name,OBJPROP_COLOR,UpTrendColor);
ObjectSet(label+per_name,OBJPROP_ARROWCODE,225);
ObjectSet(label+per_name,OBJPROP_WIDTH,2);
}
else if (t==-1)
{
ObjectCreate(label+per_name,OBJ_ARROW,1,time,price);
ObjectSet(label+per_name,OBJPROP_COLOR,DownTrendColor);
ObjectSet(label+per_name,OBJPROP_ARROWCODE,226);
ObjectSet(label+per_name,OBJPROP_WIDTH,2);
}
else
{
ObjectCreate(label+per_name,OBJ_ARROW,1,time,price);
ObjectSet(label+per_name,OBJPROP_COLOR,NoTrendColor);
ObjectSet(label+per_name,OBJPROP_ARROWCODE,104);
ObjectSet(label+per_name,OBJPROP_WIDTH,2);
}
}
}
}
void output_line(string label, string sym,double price, bool invert, bool create)
{
int n=MN+W1+M1+D1+H4+H1+M30+M15+M1;
int br=MathRound(BarsPerWindow()/12);
int D=MN+W1+D1;
int H=D+H4+H1;
output_arrow(label,sym,MathRound(br*10.5),price,0,"",invert,create);
output_arrow(label,sym,br*9,price,PERIOD_MN1,"MN",invert,create&&MN);
output_arrow(label,sym,br*(9-MN),price,PERIOD_W1,"W1",invert,create&&W1);
output_arrow(label,sym,br*(9-MN-W1),price,PERIOD_D1,"D1",invert,create&&D1);
output_arrow(label,sym,br*(9-D),price,PERIOD_H4,"H4",invert,create&&H4);
output_arrow(label,sym,br*(9-D-H4),price,PERIOD_H1,"H1",invert,create&&H1);
output_arrow(label,sym,br*(9-H),price,PERIOD_M30,"M30",invert,create&&M30);
output_arrow(label,sym,br*(9-H-M30),price,PERIOD_M15,"M15",invert,create&&M15);
output_arrow(label,sym,br*(9-H-M30-M15),price,PERIOD_M5,"M5",invert,create&&M5);
output_arrow(label,sym,br*(9-H-M30-M15-M1),price,PERIOD_M1,"M1",invert,create&&M1);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
bool invert;
double space=(95-5)/SymNo;
if (space>10) space=10;
output_line("Title","Title",95,false,true);
for (int i=0; i<20; i++)
{
output_line(DoubleToStr(i,0),Pair+SymbolSuffix,95-space*(i+1),Invert,i
為天地立心
為生民立命
為往聖繼覺學
為萬世開太平
发表于:2007-04-09 14:28只看该作者
3楼
楼主自己没用过吧,你这个公式不完整,系统还需要引用"ttm-trend"这个公式的!
韬客社区www.talkfx.co
4楼
不行啊,在图没有显示?
韬客社区www.talkfx.co
5楼
麻烦上面这位大哥加上澳元的趋势显示,感激不尽!谢谢!
